Dear friend
If you didn't receive the CD please load software and plugins From the link below (Customs sometimes confiscate CD)
Mach3 Software ：https://drive.google.com/file/d/1yoa7EdBHP0LmFZDceVldNOOF81X0rGR6/view?usp=drive_link
Software plugins： https://drive.google.com/file/d/1LKaYwL6L5c0NTqYJEwmiFuc5mnzHAttP/view?usp=drive_link

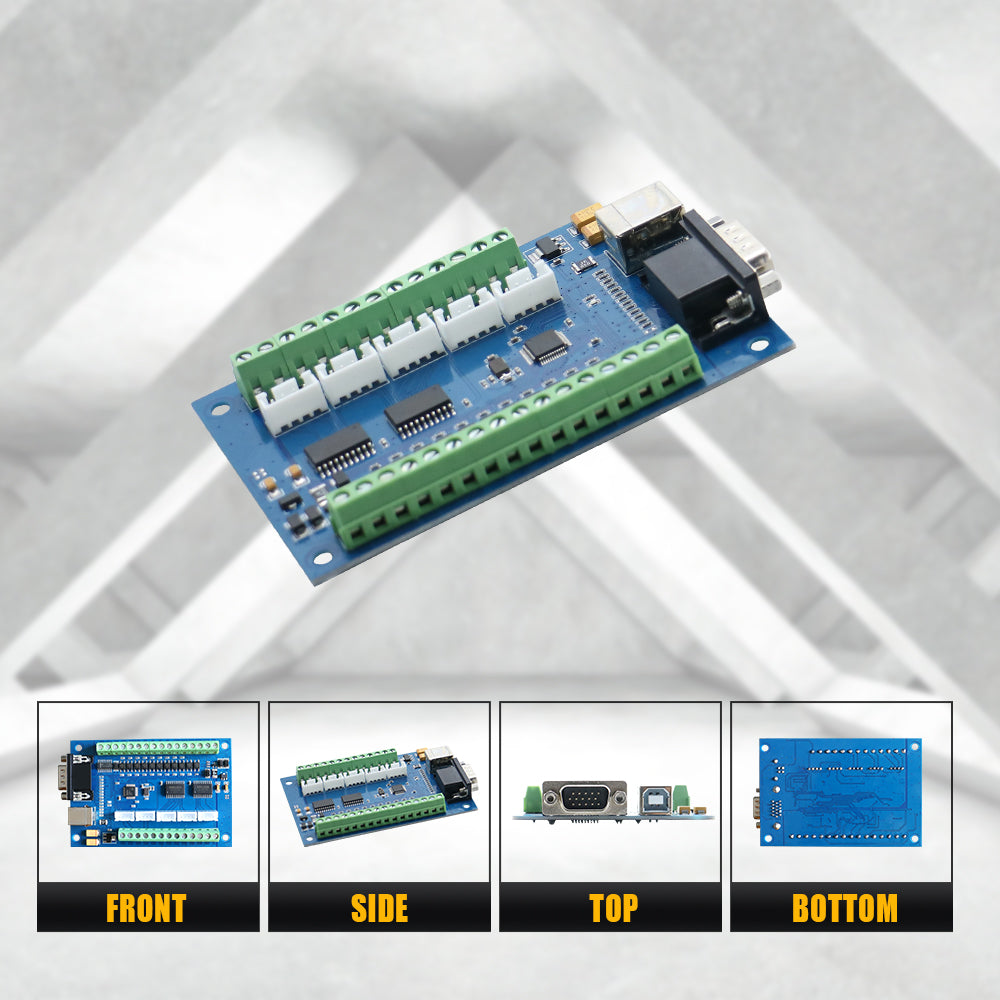

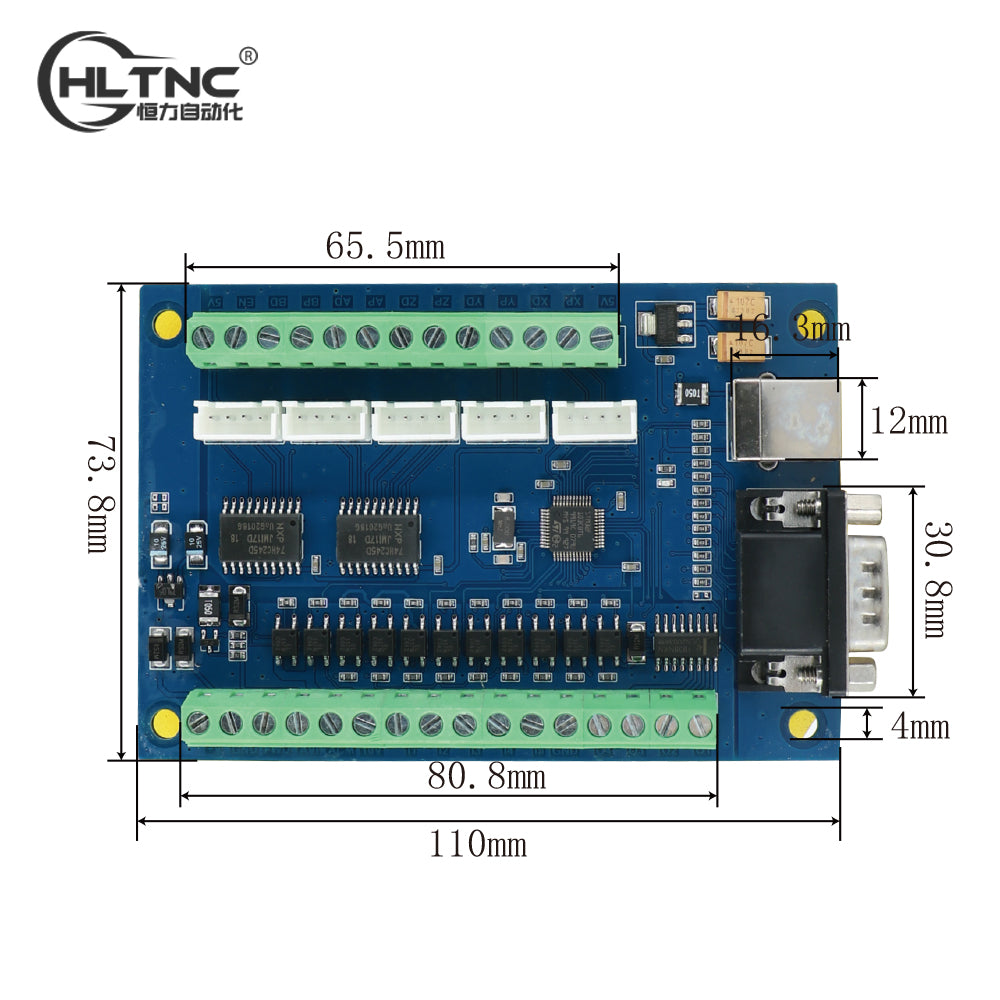

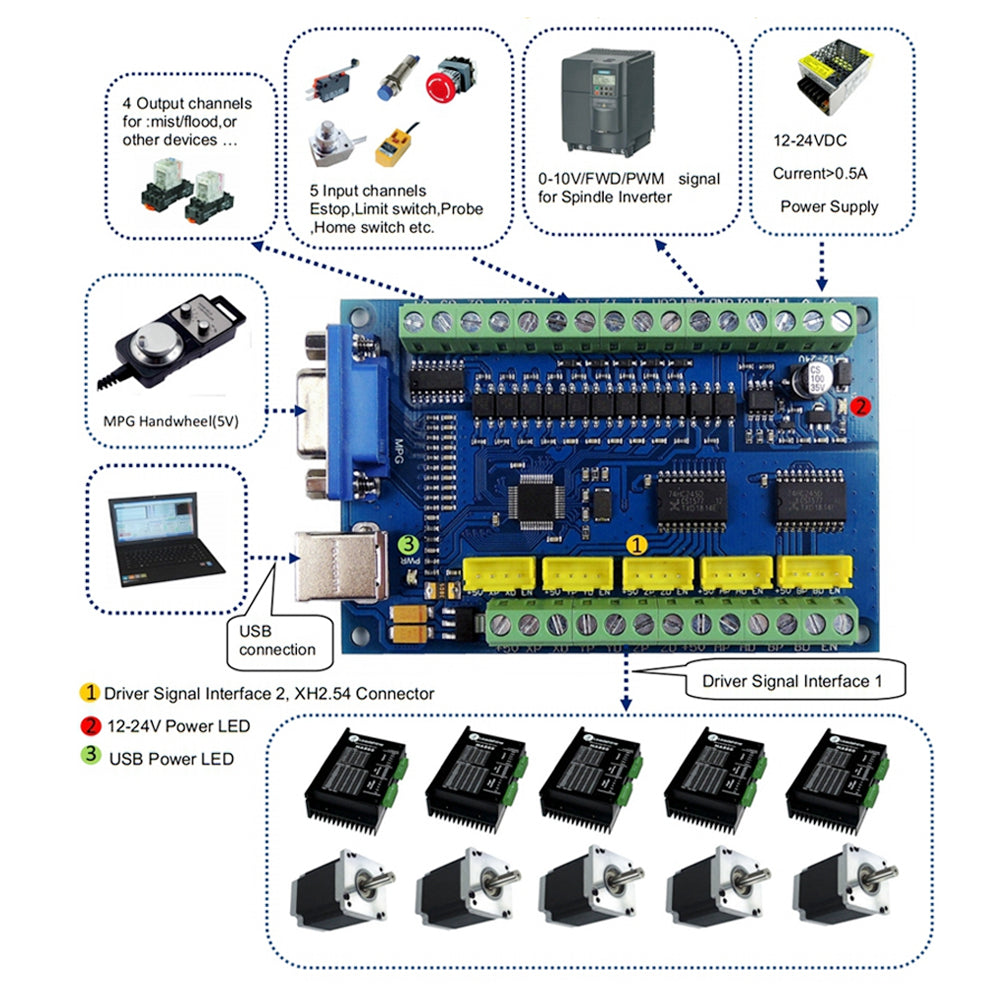

Description:
Support for 5-axis linkage, you can connect four stepper motor drives or servo drives;
1. Support for Windows XP, Windows 7 32/64bit, Windows8, Windows10 operating system;
2. Applicable to all versions of mach3 software;
3. Support for CNC controlled 5-Axis, can connect five stepper motor driver or servo driver;
4. The maximum output pulse frequency is 100KHz, and the pulse width can automatically
change with the pulse frequency, which can be applicable to the closed-loop driver of strict
requirements on pulse.
5. Five optocoupler isolation input signal interfaces: limit switch, emergency stop switch, auto
tool zero sensor, home switch, NPN sensor switch can be connected;
6. Inverter control signal interface (optocoupler isolation): Output 0-10V speed control signal,
PWM speed control signal, spindle start control signal, used for mach3 software to control
spindle's speed, start and stop;
7. Four universal output signal interfaces, the maximum output 500MA current, can drive relays,
solenoid valves, used to control mist, pumps, cylinders and other equipments;
8. Support for external connect electronic hand wheel, use HDR15 interface to connect electronic
hand wheel, used for manual control of machine tools;
9. Add the enable signal interface, can be used to control the driver enable signal;
10. The power of control card: voltage 12-24VDC, current more than 500MA
package include
1 x CNC Card 5axis
1 x USB cable
1 x Software sent via email or download via link
Mark
Description
+5V
+5V Driver signal common
XP
X Axis Pulse signal
XD
X Axis Direction signal
YP
Y Axis Pulse signal
YD
Y Axis Direction signal
ZP
Z Axis Pulse signal
ZD
Z Axis Direction signal
AP
A Axis Pulse signal
AD
A Axis Direction signal
BP
B Axis Pulse signal
BD
B Axis Direction signal
EN
All Axis Enable signals
Mark
Description
V+
Positive power supply 12-24V
V-
Negative power supply 0V
FWD
Inverter Control signal: Start/Forward
AVI
Inverter Control signal:0-10V Speed control signal
GND
GND=V-=0V
PWM
PWM Signal
Mark
DescriptionMach3 USB Motion Card STB5100 V2.1
4 / 7
COM
COM=V-=GND=0V
I1
Input signal interface 1
I2
Input signal interface2
I3
Input signal interface3
I4
Input signal interface 4
I5
Input signal interface 5
O1
Output signal interface 1
O2
Output signal interface 2
O3
Output signal interface 3
O4
Output signal interface 4
Mark
Description
12-24V LED
Power input indication LED
PWR LED
USB power indication LED
MPG
MPG Hand wheel interface
