Introduction

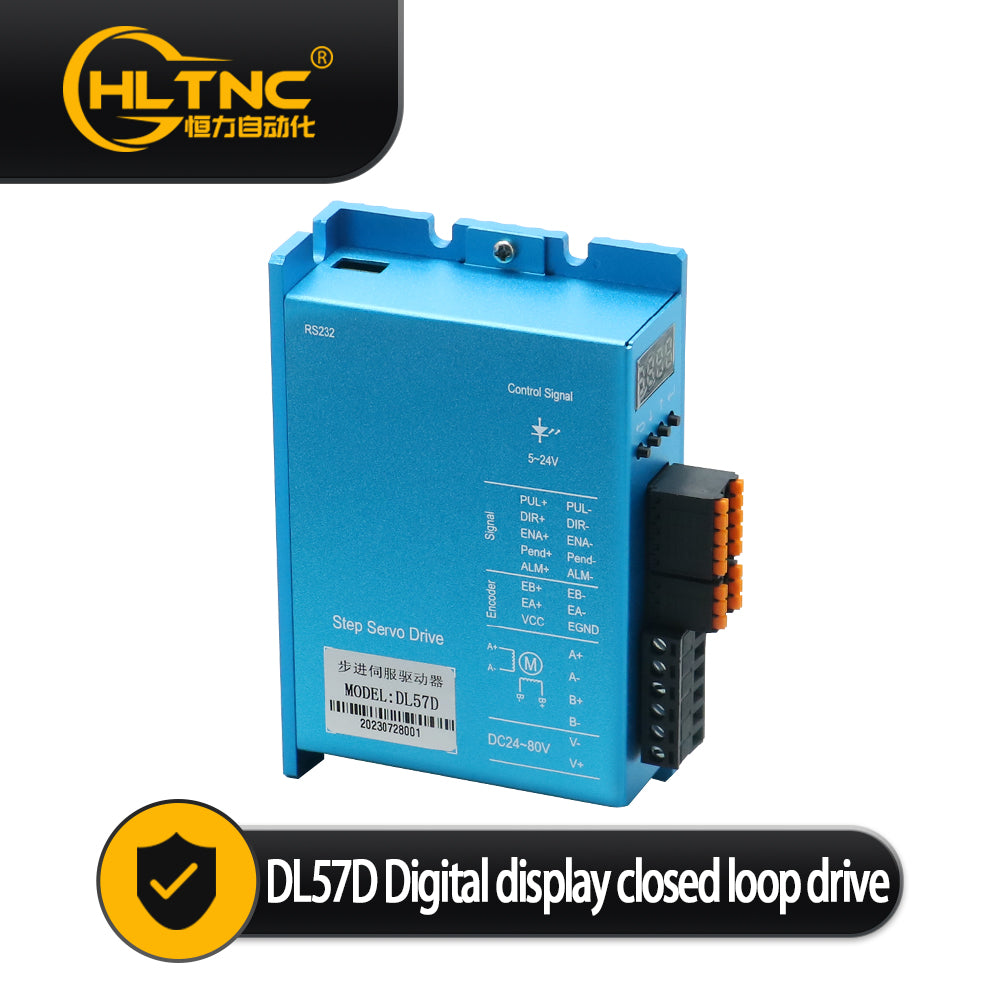

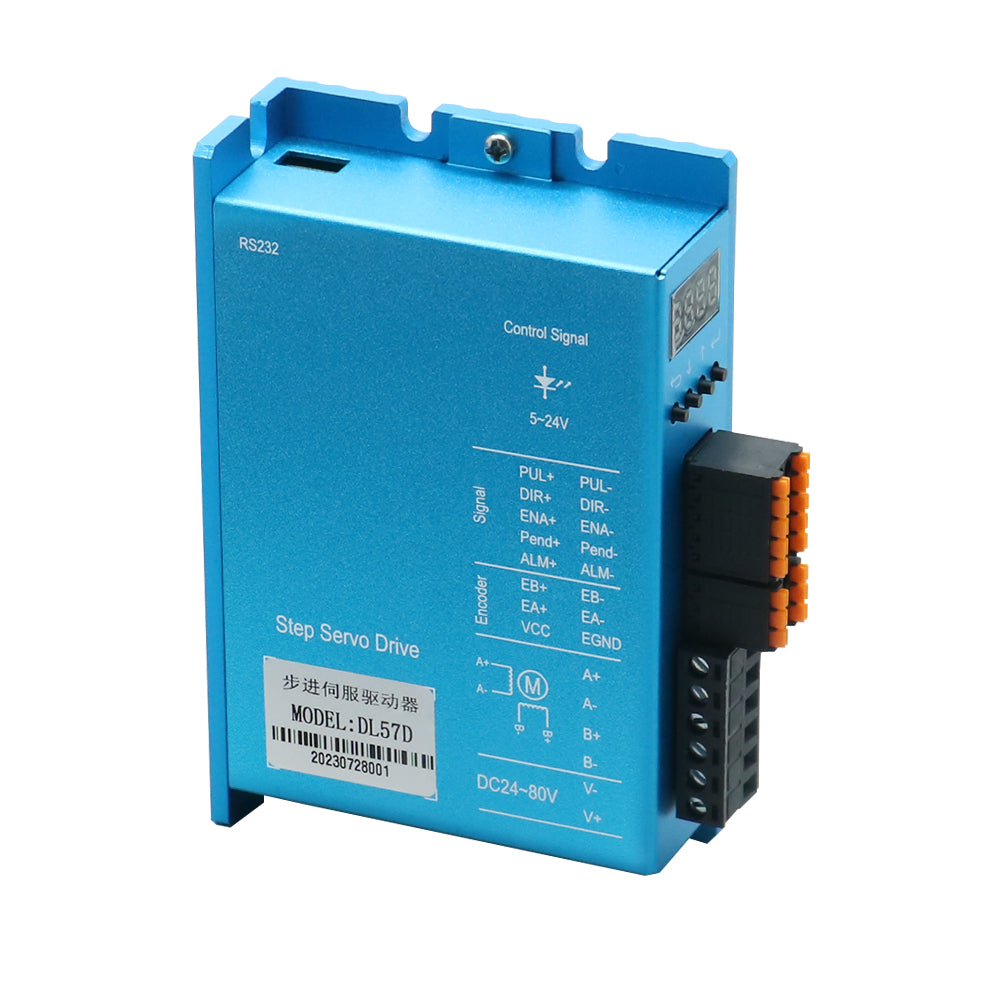

DL57D is a new digital step-servo driver, using a vector controlling technology. It can drive
42 series and 57 series step-motors.
DL57D can fit various automation equipment and instruments with below technical features:
Use of 32 bit motor control MCU;
Use of vector servo control technology;
Easy Operation with four LED Segment Displays and keyX4;

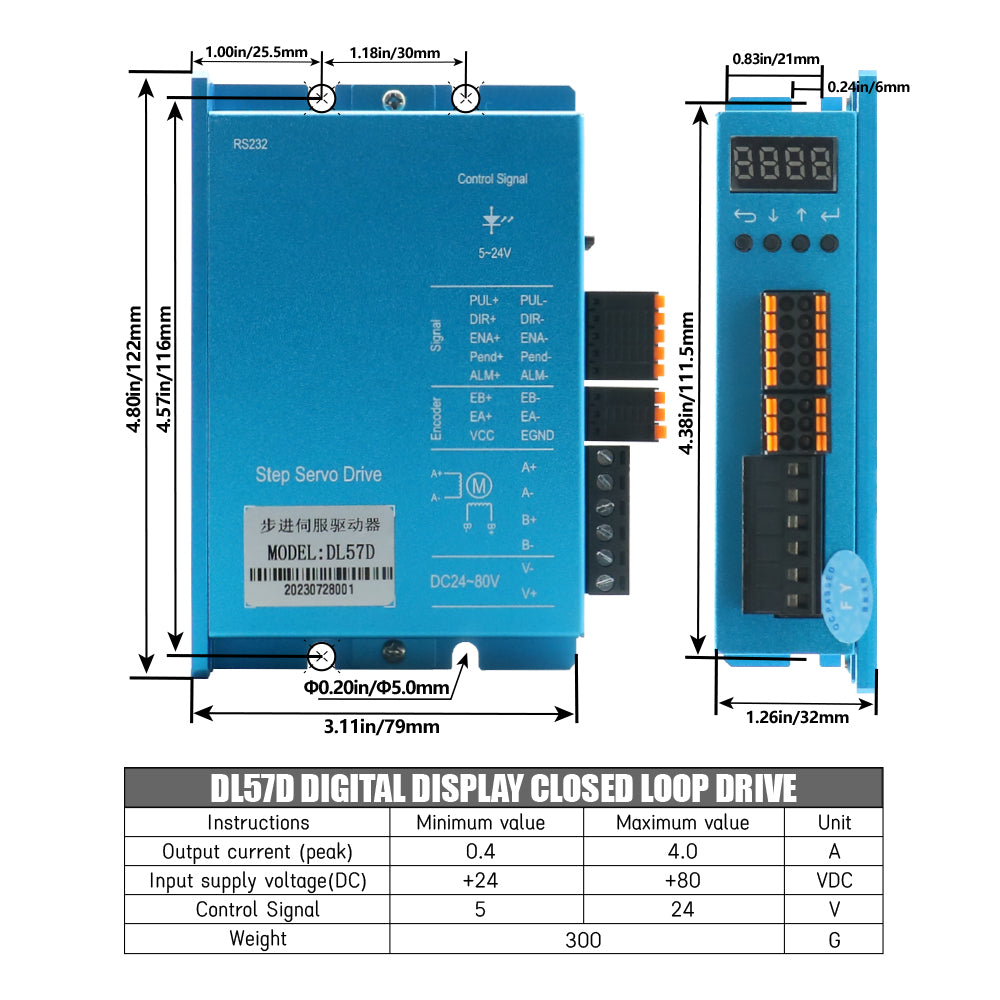

Wide range of drive current drive current from 0.4 to 4.0A/phase;

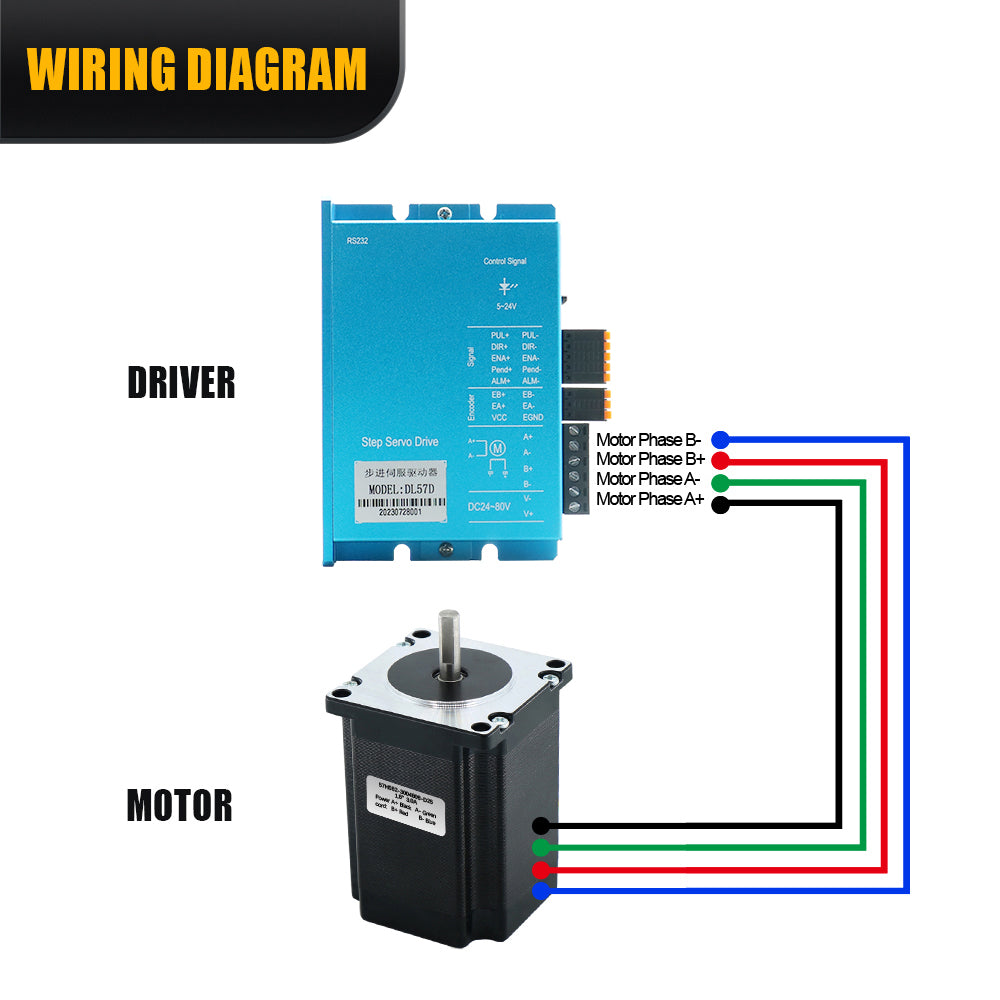

Can drive 42 series and 57 series hybrid step-motors;
Opto-isolated signal input/output;
Highest response frequency: 200Kpps;
Provide 15 channels micro steps ,highest micro step: 51200 ppr
Provide Electronic Gear Ratio;
Protection circuit：Over heat; Over current; Over voltage; Over-speed and position deviation;
Two control method:Position,Speed;
Net Weight:300g
