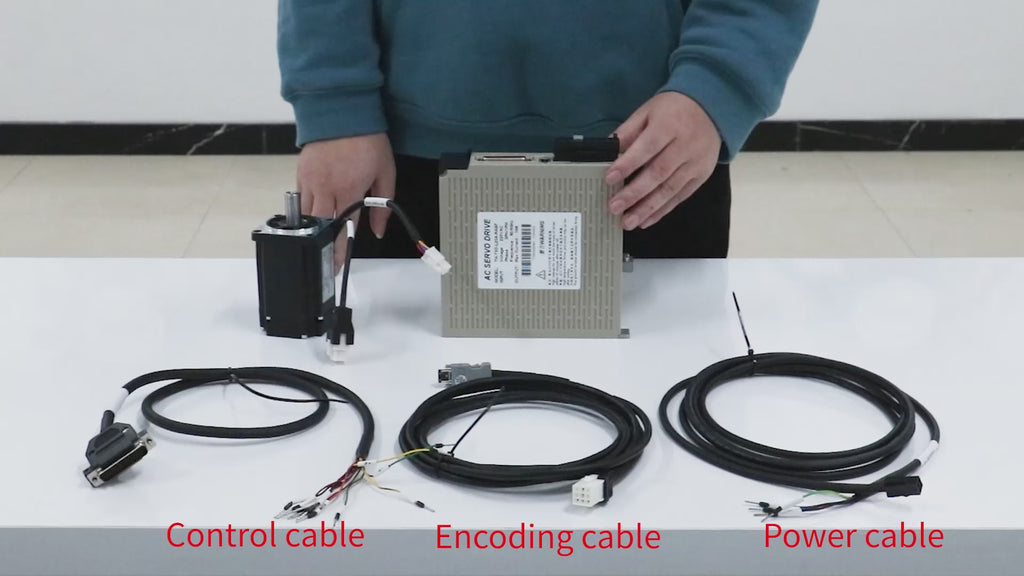

Description
1: Support pulse (5V or 24V pulse signal), analog quantity (-10v——+10V), modbus RS485 control
2: Supports CNC and PLC systems
3: To connect to a 24V pulse signal, two 2K 1/4W resistors need to be connected in series for P+and D+, otherwise the driver will burn out
4: The motor with brakes needs to be connected to a 24V external power supply and relay
5: Power on settings
Change P-036 to 1 (opposite direction) 0 (positive direction) motor direction conversion parameter
Change P-098 to 1 (internal enable) 0 (external enable)
The larger the parameter of P-029 electronic gear ratio, the faster the speed
Long press the confirm button on E-SEF to display DONE saved successfully. After setting all parameters, power off and restart.
T3D Debugging Software
https://drive.google.com/drive/folders/1WmNfl8vkUXNUk26Uiyw9jn5W8Z54b9gD?usp=drive_link
