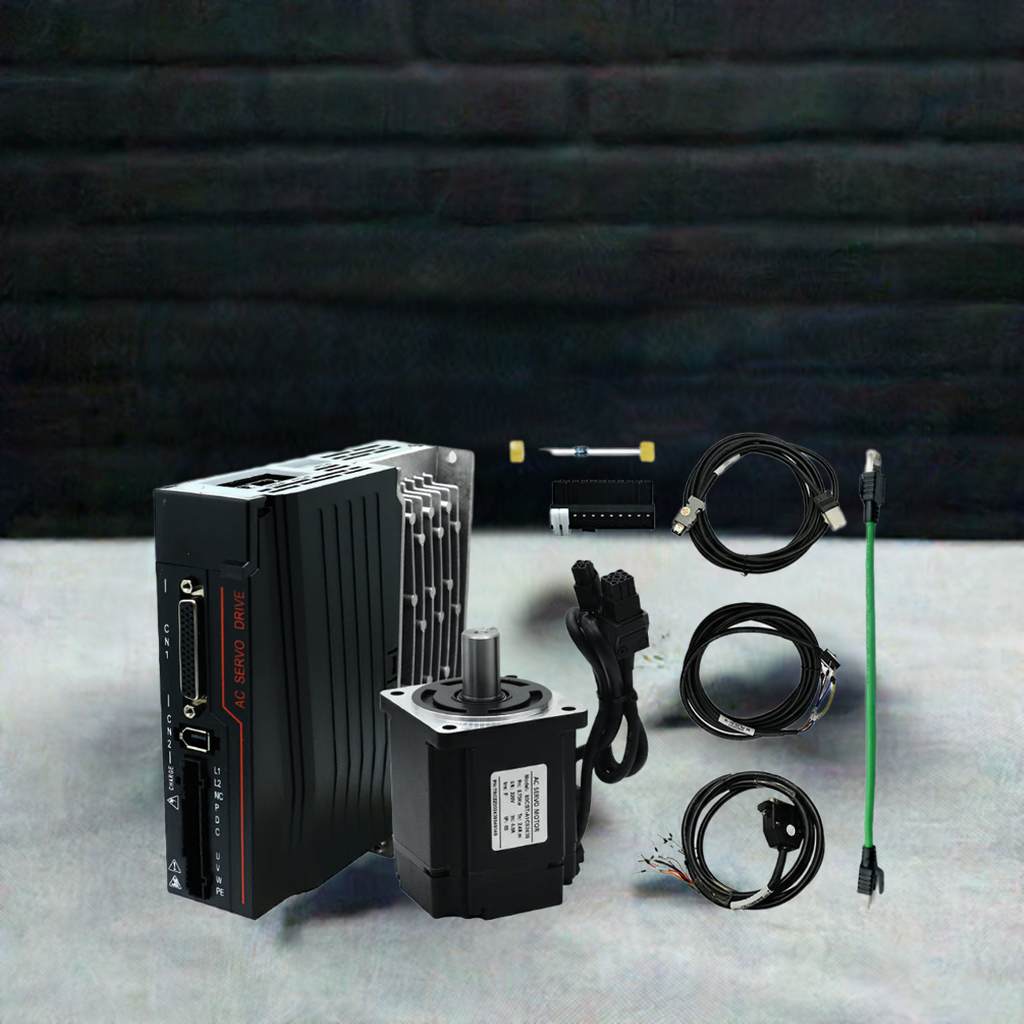

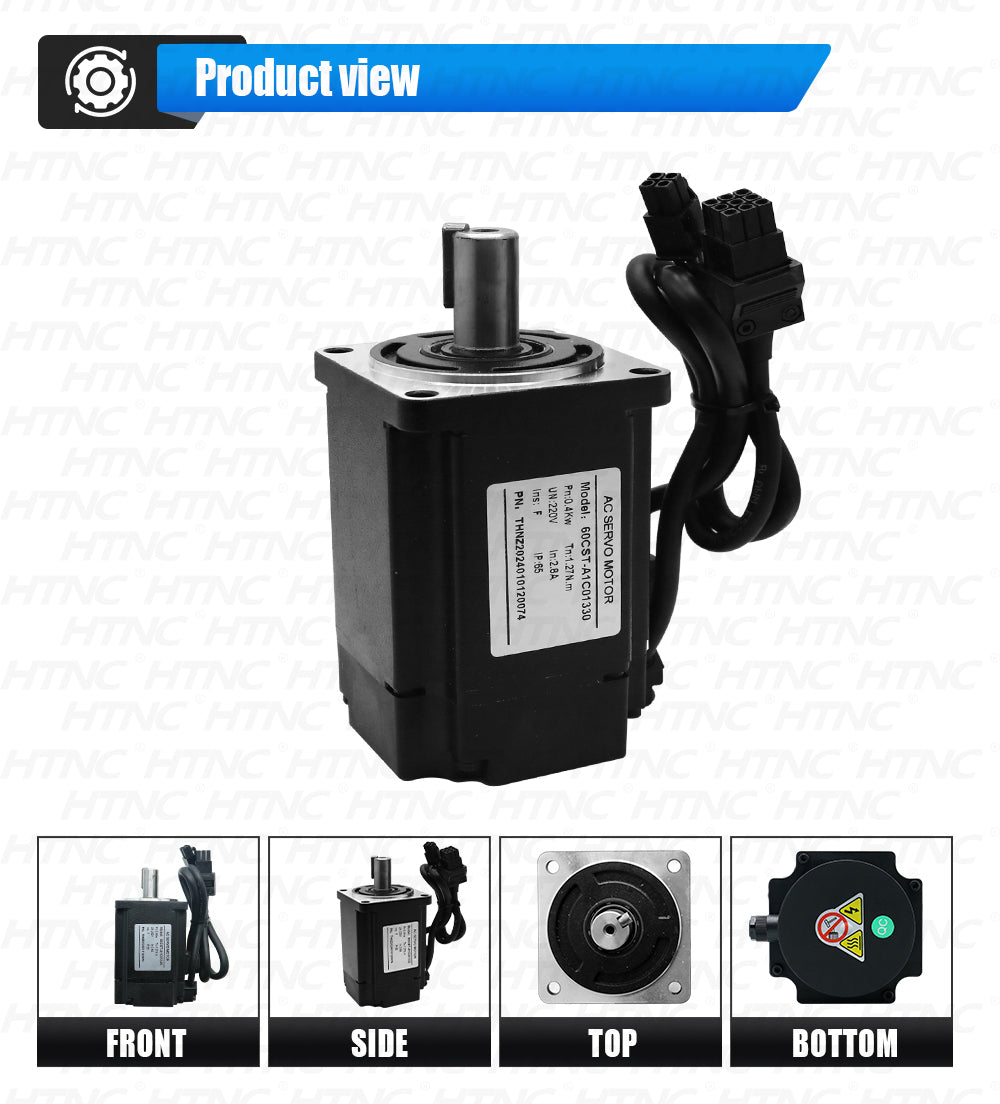

HLTNC 400W / 750W AC Servo Motor 3000RPM 1.3N 2.4N & C30S RS485 Driver Kit 220V & 3meters Cable Absolute encoder For CNC Machine

C30S startup settings:

Change P-036 to 1 (opposite direction) 0 (forward direction) motor direction conversion parameter

Change P-098 to 1 (internal enable) 0 (external enable)

The larger the parameter of P-029 electronic gear ratio, the faster the speed

Long press the confirm button on E-SEF to display DONE saved successfully. After setting all parameters, power off and restart.

1: Support pulse (5V or 24V pulse signal), analog signal (0-10V)

2: Supports CNC and PLC systems

3: To connect to a 24V pulse signal, two 2K 1/4W resistors need to be connected in Signals for P+and D+, otherwise the driver will burn out

4: The motor with brakes needs to be connected to DC 24V external power supply and relay

5: Cable length is available for 3, 5, 8 meters, default is 3meters, if you need other length, please contact with salesman

The disadvantage of C30S driver is that it doesn't have ABZ feedback. We recommend the T3D kit for this function. Link of T3D kits:

400W and 600W: https://www.aliexpress.com/item/1005005747787823.html

750W and 1000W: https://www.aliexpress.com/item/1005004869497167.html
