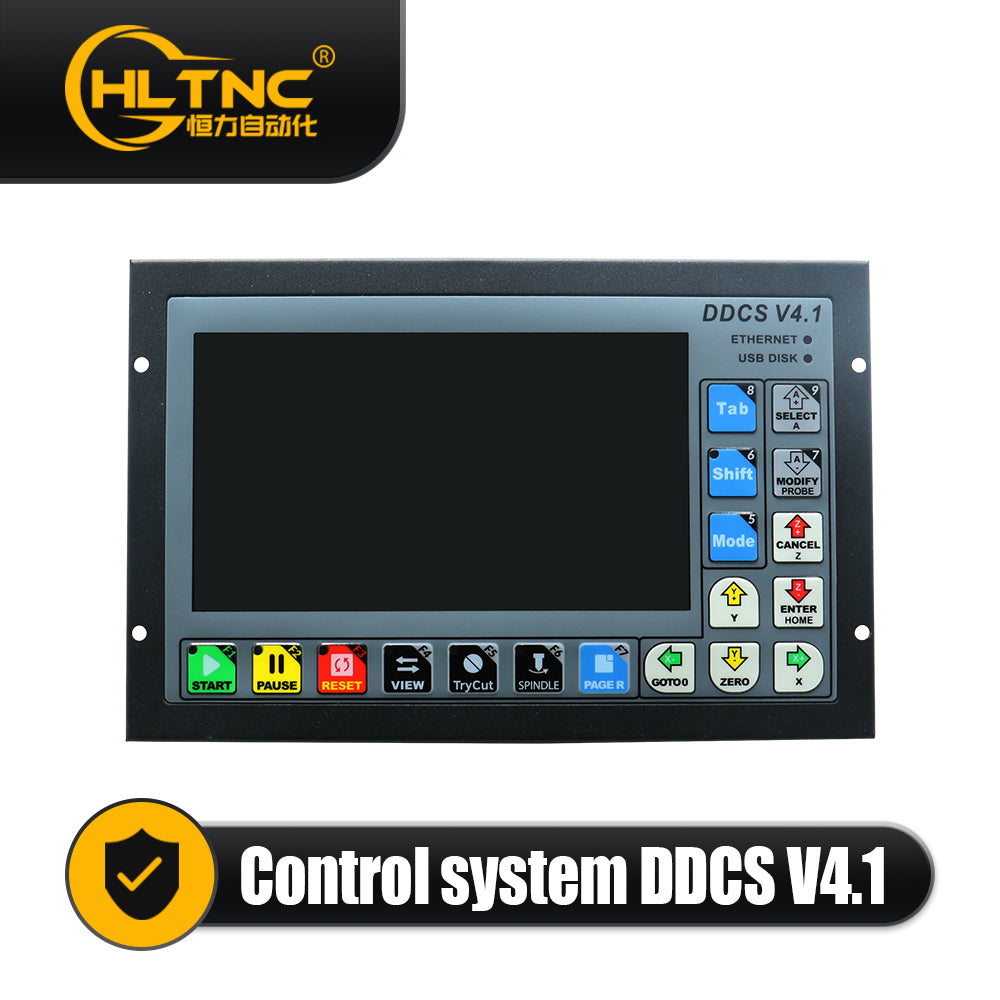

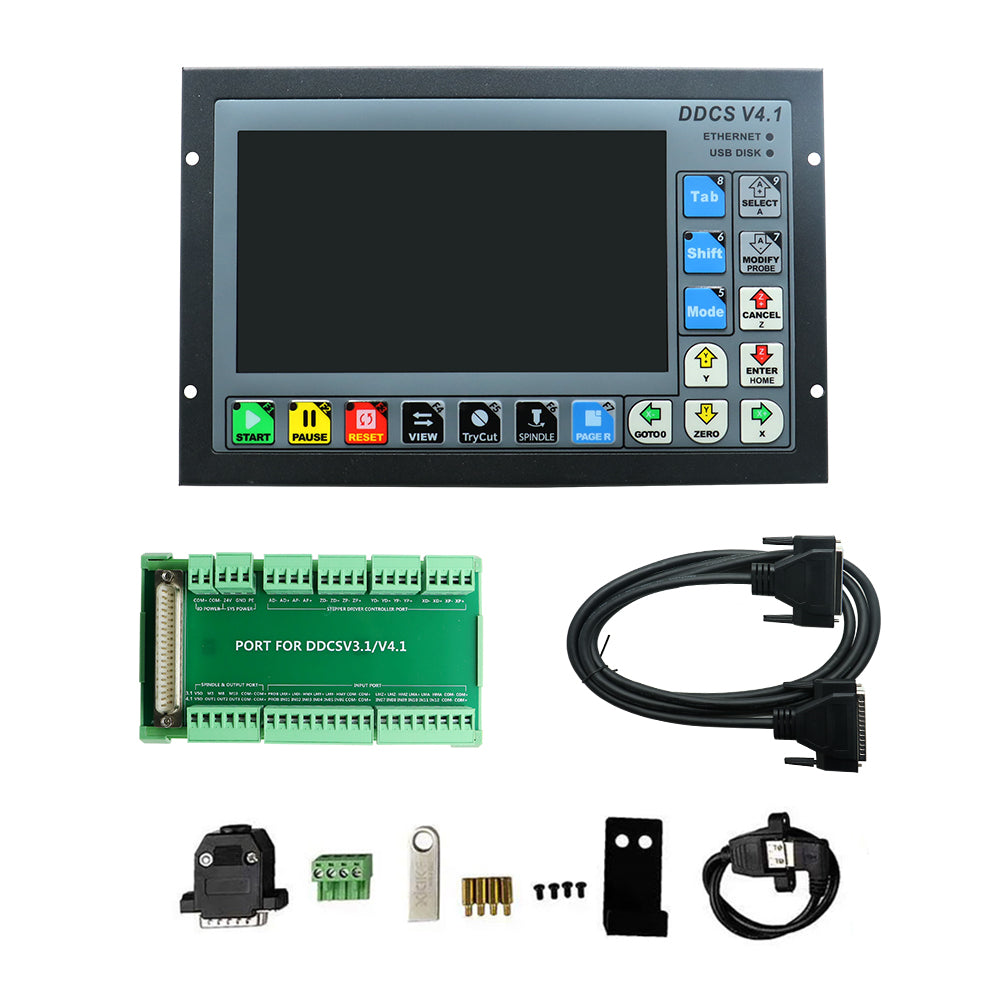

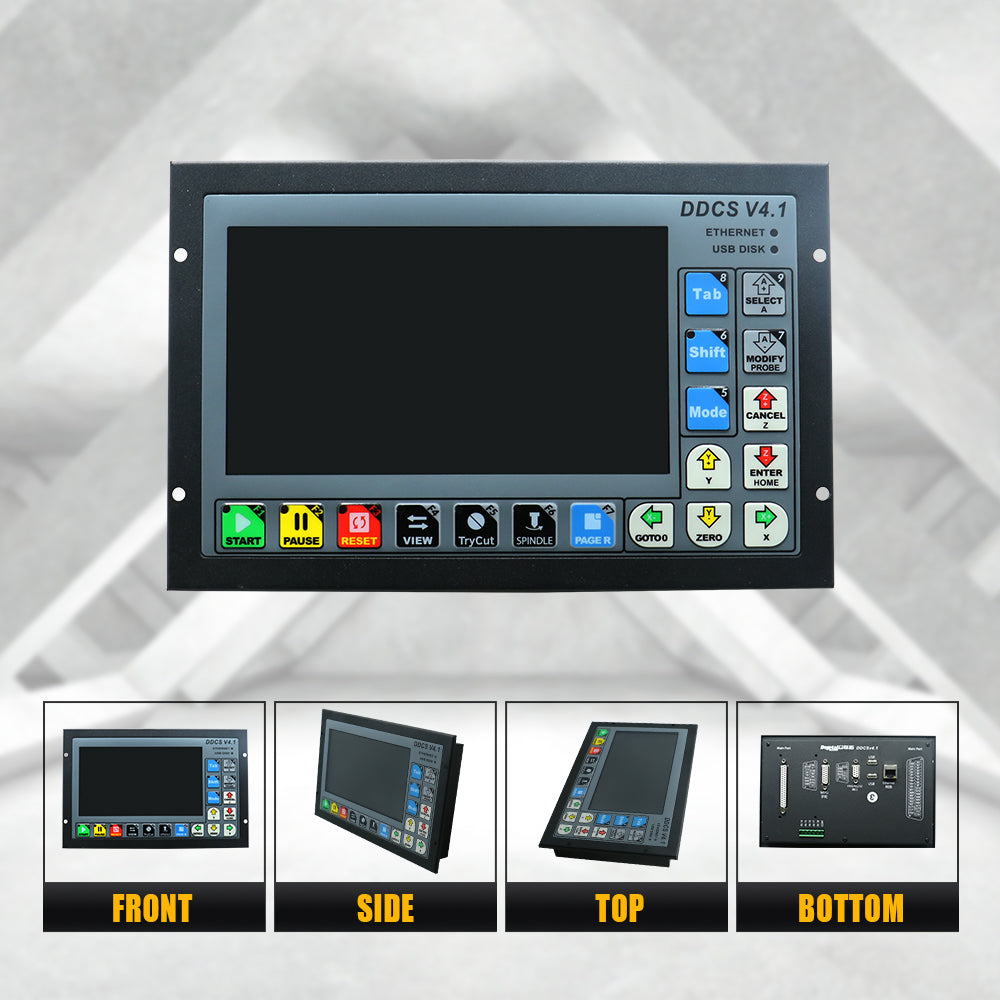

HLTNC DDCSV4.1 Upgrade Motion Controller 3-4 Axis 500Khz Speed Controller G code 24V input Servo Stepper Control Panel For CNC

$431.94 $296.03

Shipping calculated at checkout.

number of axles: 3 Axis

  • 3 Axis
  • 4 Axis
Will not ship until [19041994]
$431.94 $296.03
Out of stock

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

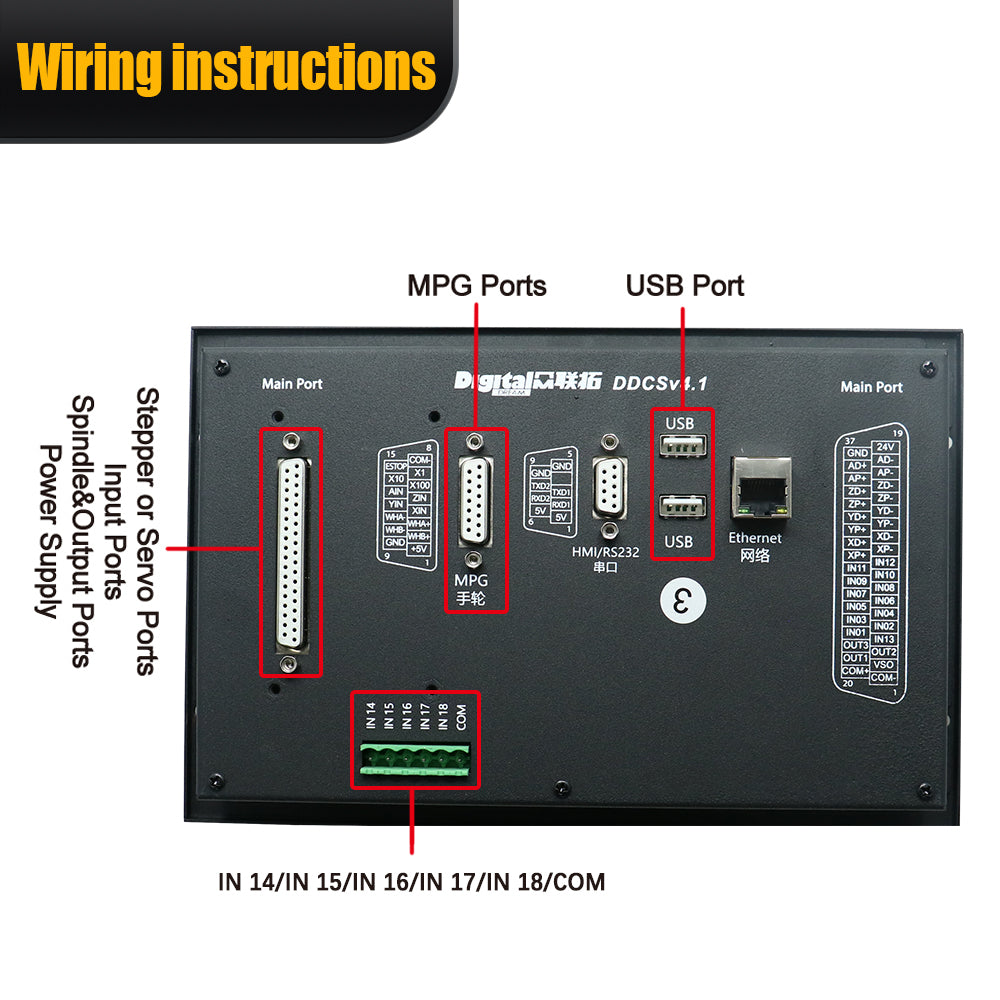

1.2 DDCS V4.1 Brief technical feature:

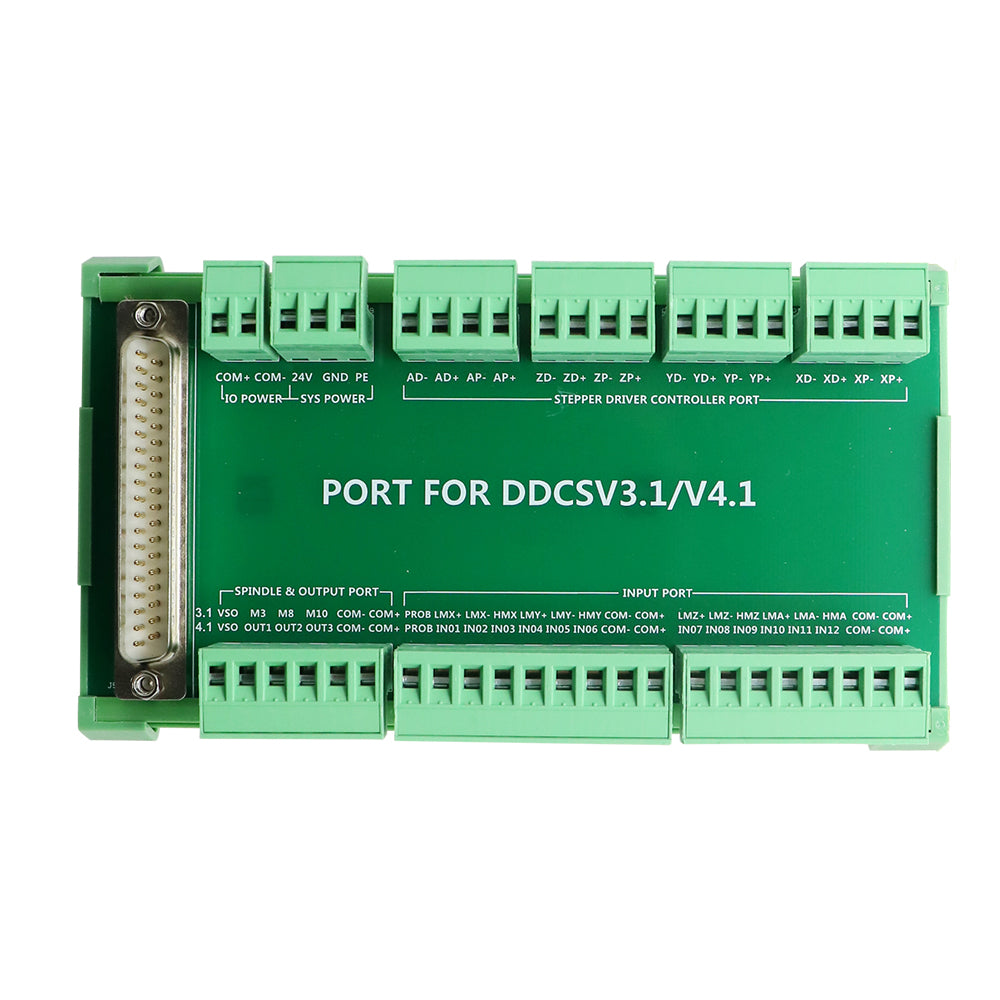

1) 18 photoelectric isolated digital inputs,3 photoelectric isolated digital outputs.
2) The spindle can be configurated as Analog spindle(0~10V) and also Servo spindle.
3) 3-4 axes motor Control. Differential Mode and Double Pulse Mode output signal for optional,
Maximum interpolation pulse output frequency is 500Khz/Axis, 2-4 Axis linear interpolation, any 2
axis circular interpolation;
4) ARM9 main control chip,FPGA core algorithm chip.

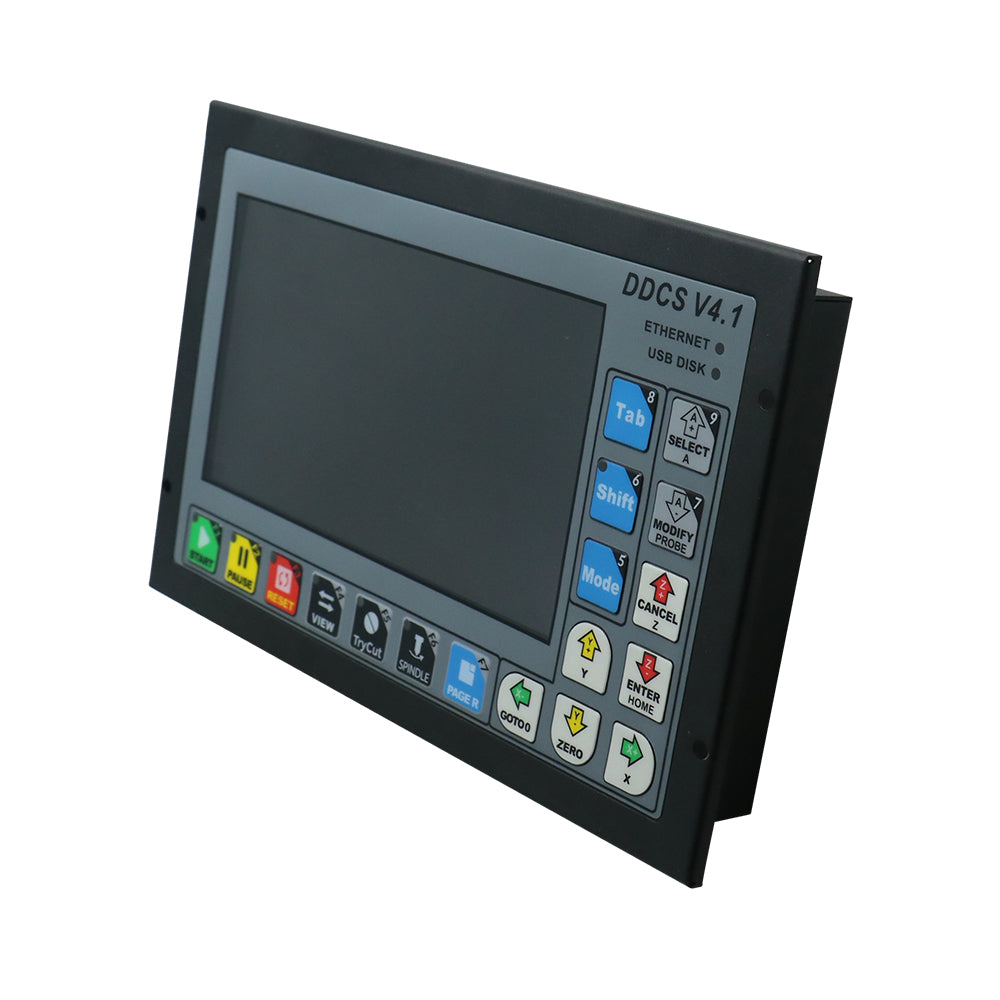

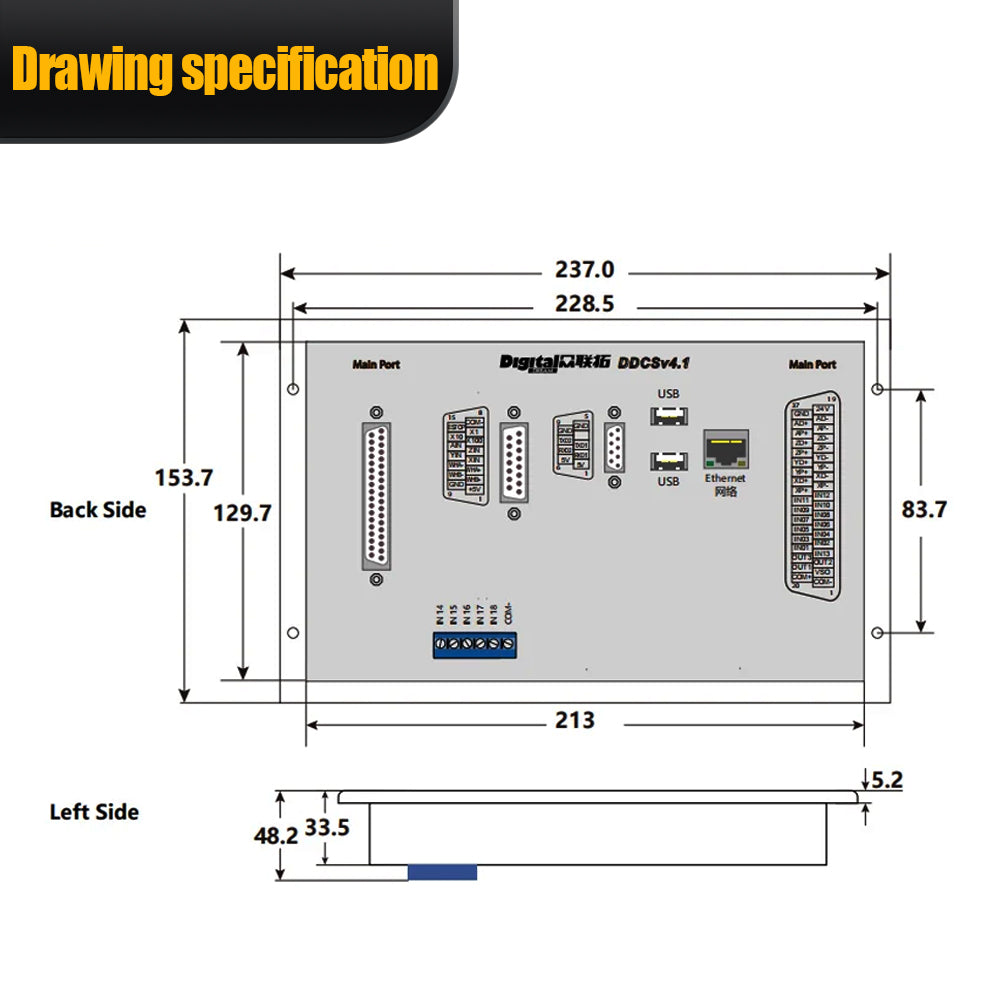

5) 7 inches TFT screen, Size: 1024x600 Pixels, Resolution:72 Pixels/Inch; 17 operation keys.
6) The Power Supply for IO Port is 24VDC,minimum current is 0.5A, the Power Supply for Control
ler system is also 24VDC,minimum current is 0.5A. Controller needs both power to work properly.
7) USB flash disk support for G code file input; Can transfer the files by Ethernet communication
between the computer and DDCS V4.1 controller; No size limited of the G-code file.
8) Compatible with standard G-code, support popular CAD/CAM software, such as ArtCam,
MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360 and so on;
9) Support standard MPG.
10) Support function of“ Try cutting” (handwheel guiding) function.
the distance.
11)Support Jog function for each axis (continuous, step, defined distance), Customer can define
12)Support Float Probe, Fix Probe, Vertex Probe and Tool Length Measurement.
13) Support the operation of quickly go to specify line and closest position.
cal machining.
14) Support Array Machining, Sequence Machining, Milling Plane Machining, and Milling sylindri-
15) Support Bias for XYZA axis, and can defind the Bias distance.
16) Support Pause breakpoint, Power-Cut Recovery Beakpoint and loaded breakpoint; And
Support Start from the specific line and closest line.
17) Support Multiple origin points operation, the users can create an origin point and load it.
18) Support Find Middle for X and Y axis.
19) Improved the simulation function. During the simulation, you can adjust the FRO and
observe whether the programming path meets the expectations and check the soft limits. During the
simulation, it can be paused, and when press the Start key again, the system will continue to simulate from the pause breakpoint.
20) Slave X, Slave Y Or Slave Z, for Gantry machine with two independent motors on main axes.
21) Now English and Chinese language is avaliable; System also suppport International coding,
almost support all language, the users can add their own language to the control system.
22) DDCS V4.1 Only Supports NPN Type Limited Switch.
23) Support 4 kinds operation rights: visitor, operator, admin, super admin.

DDCS V4.1 VS DDCS V3.1 New Features:

1) Added file transfer via Ethernet;
2) The mapping axis function has been added to the CNC function (which can be used to configure double Y gantry structure machines);
3) The spindle can also be configured as a servo spindle;
4) Added bias adjustment;
5) The instruction has added polar programming instructions and rotation instructions, and the radius compensation instruction has been improved;
6) A new algorithm has been introduced in motion planning, which makes the path of small line segments smoother through configurable contour errors;
7) Supports three detection functions: corner detection, inner center detection, and outer center detection;
8) Improve the specified line startup function and the closest point startup function, allowing for quick startup within seconds regardless of the size of the file;
9) Improve the simulation function, during the simulation period, by adjusting the magnification, carefully observe whether the programming path meets expectations, and perform soft limit checks
During simulation, it is possible to pause at will. After pressing the start button, the system will start executing from the simulation pause breakpoint;
10) In terms of input ports, port functions can be configured arbitrarily, adding support for driver alarms;
11) For the A-axis, a loop encoder has been added, which is particularly useful for machining files where A continues to grow;
12) Also, a parsing error prompt has been added. DDCS V3.1 has not been resolved yet, and if there is a parsing error, it will be stopped directly;
13) The language adopts international encoding, which supports almost all language families. This advantage is that it can create language packages for various languages;
14) Add emergency stop acceleration configuration parameters to solve the huge impact caused by direct stopping during high-speed machine tool movement;
15) The FPGA speed generator adopts a 32-bit speed generator, which has higher resolution for speed and acceleration.
