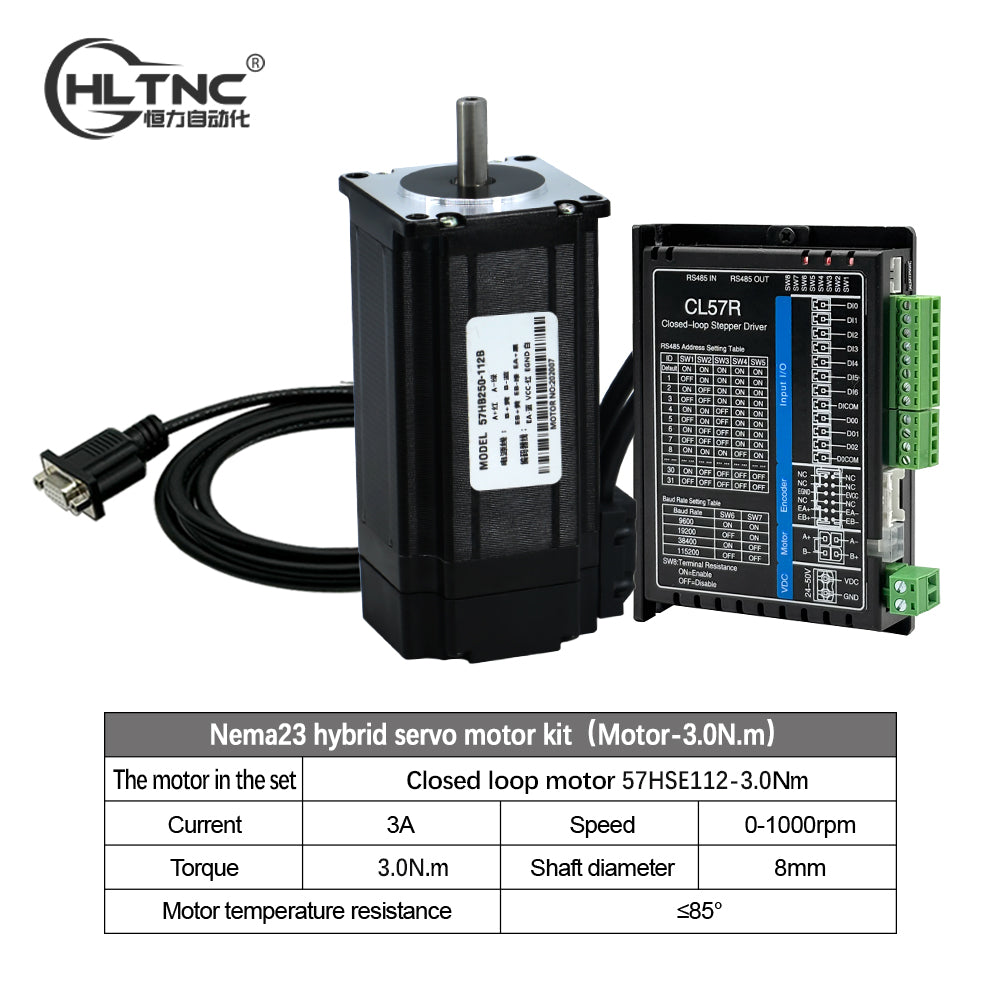

HLTNC Nema23 Close Loop Stepper Motor & CL57R Driver DC 24V-48V With RS485 Communication Support Modbus RTU protocol For CNC Router

Description

1、Product Description

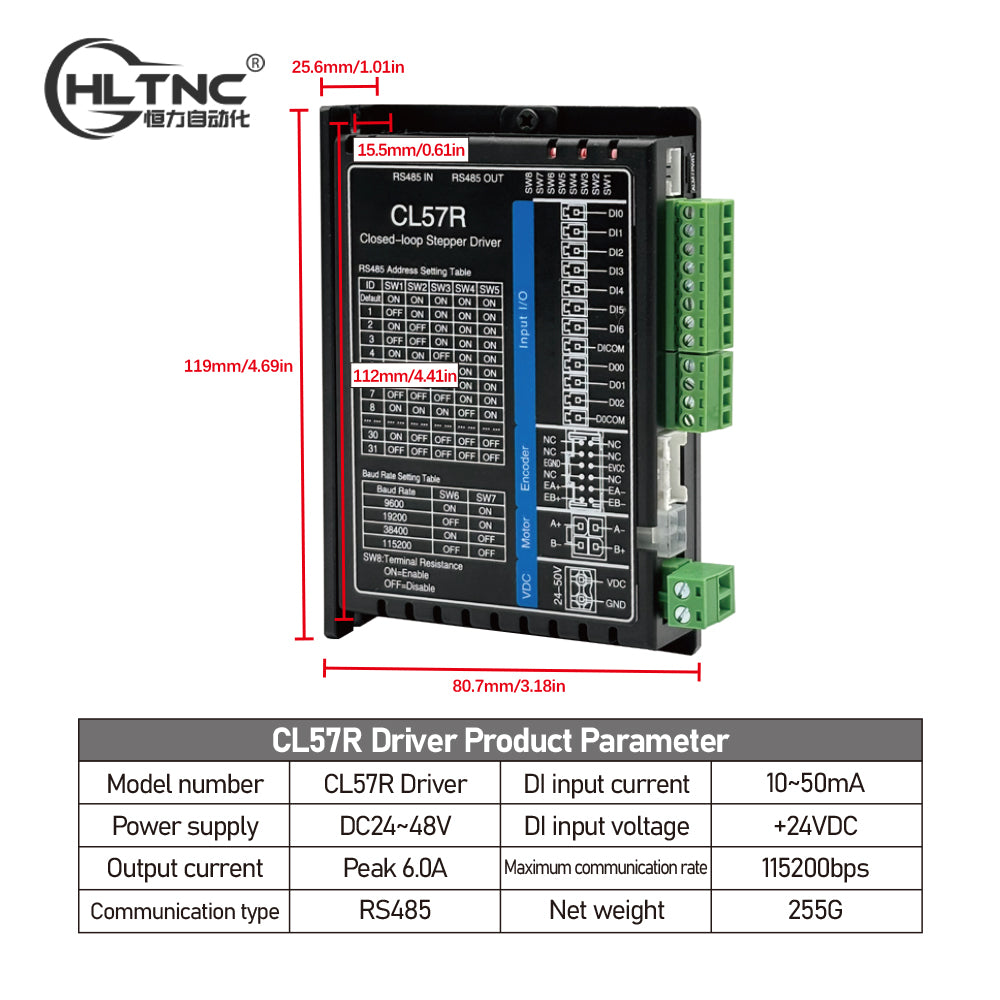

CL57R is a closed-loop stepper drive product based on the RS485 Modbus that
supports the Modbus RTU protocol. This product integrates a single-axis controller
function and uses the standard Modbus RTU bus communication protocol for control.
It can mount a maximum of 32 axesand can realize multi-axis bus synchronous control.
The driver has position control, speed control, 16-segment internal position and
16-segment Internal speed control, support for zero return, absolute/relative
positioning, JOG and other functions, can be directly controlled using a touch screen
or a controller with an RS485 interface.

2、Features

 Supports standard Modbus RTU protocol on RS485 bus ；
 No loss of step, accurate positioning ；
 The current size is intelligently adjusted according to the load to adapt
to various mechanical load conditions.；
 Built-in acceleration, deceleration and smoothing filter control for
smoother operation；
 User-defined segments；
 Supports position, speed, zero return, JOG, multi-stage position,
multi-stage speed and other modes ；
 7 input ports, 3 output port functions all programmable and configurable；
 Voltage range: DC+24V~48V；
 With overcurrent, overvoltage, position tolerance and other protections；
